Please note that although the gaskets are strong under compression, you should never use a sharp tool like a screwdriver to install them. This may tear the silicone.

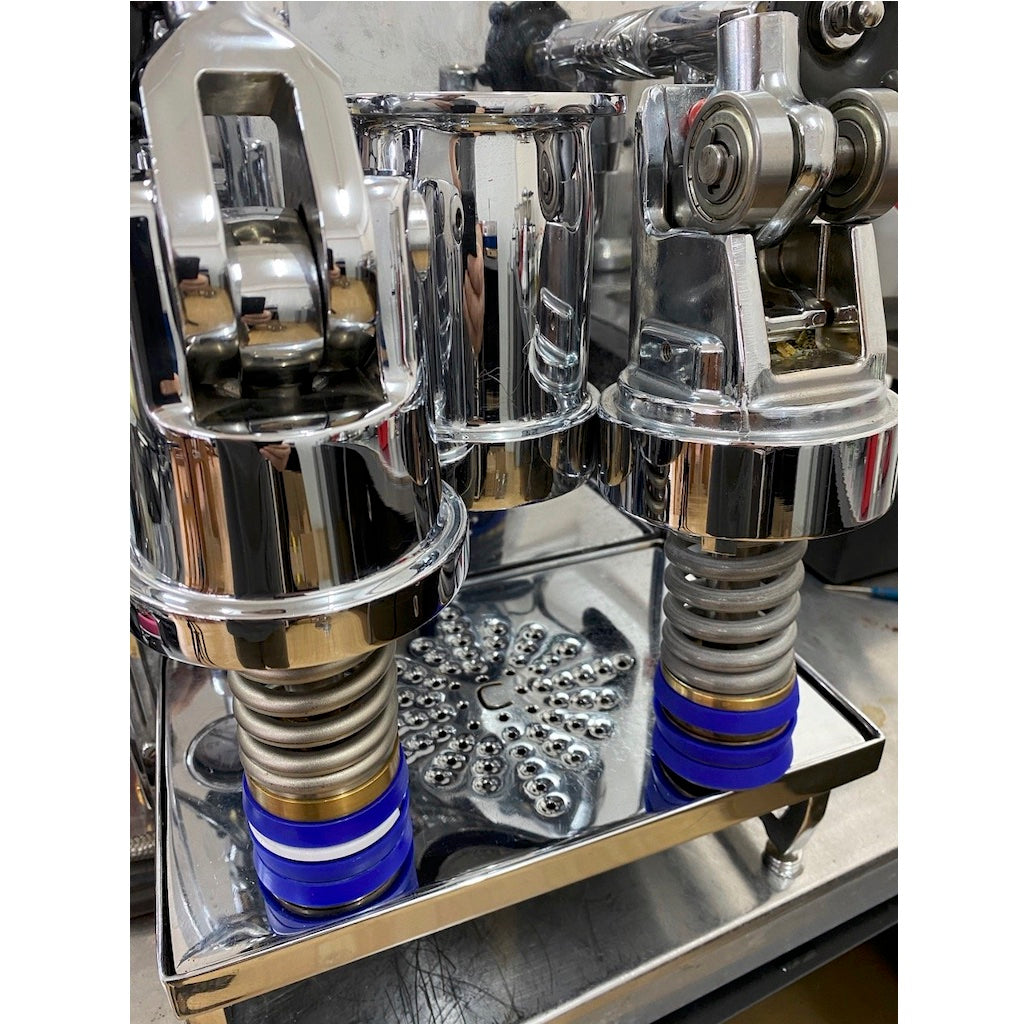

The piston V seals for the levers are now blue, they are now a different design to the red seals which will only be used on the Robot from now on. The new blue seals are a bit larger than the red seals.
As with any silicone seal, you should only use food safe silicone grease to lubricate them, do not slather it on, a sheen is sufficient. Dow 111 is a good choice.

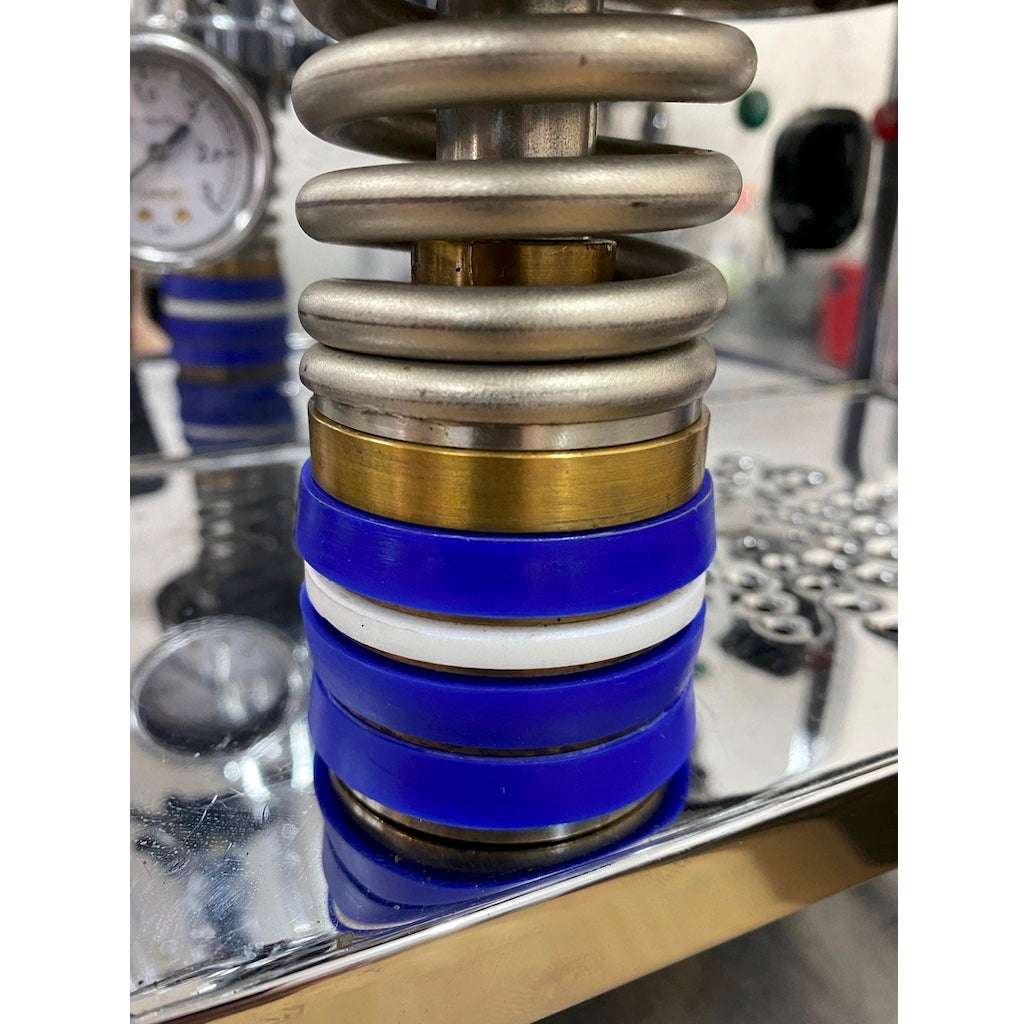

Each piston requires 3 V seals. The V seals are must softer and easier to install than the rubber ones.

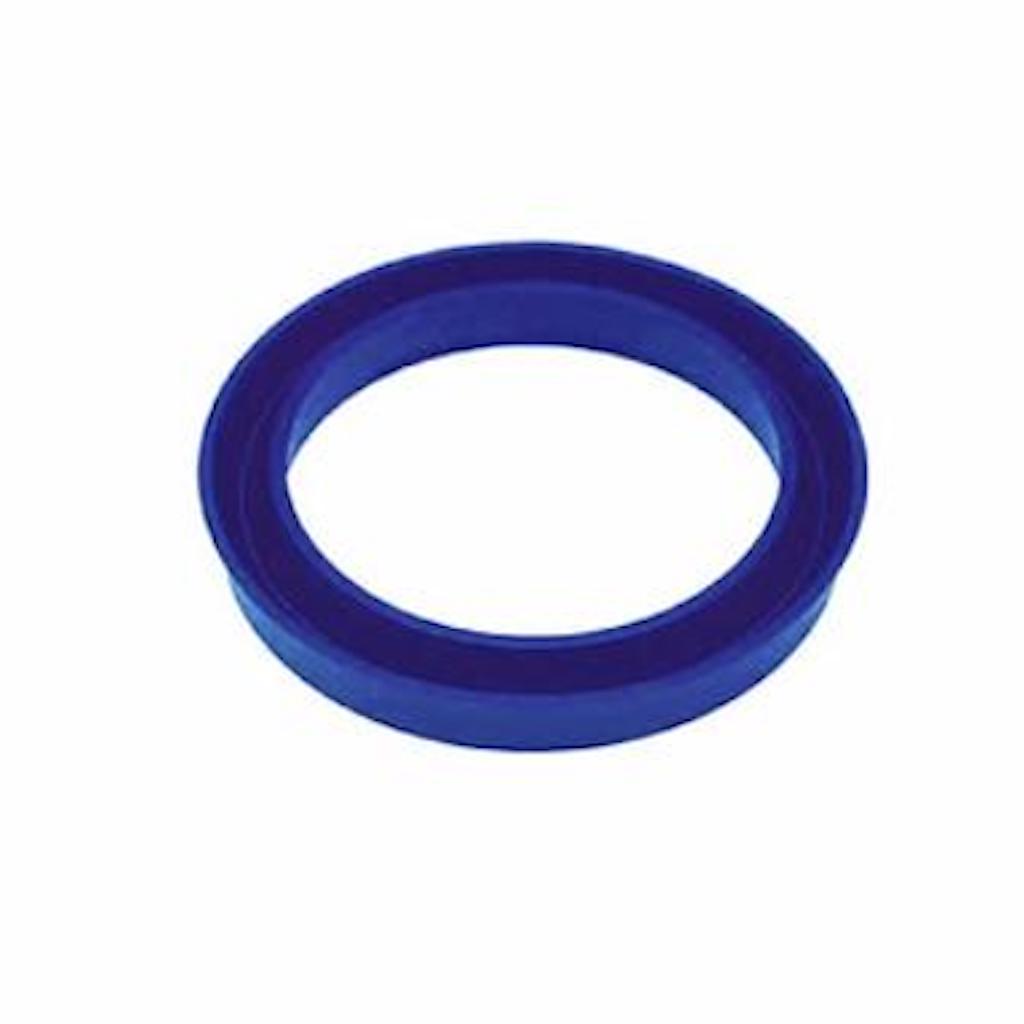

Item: Modern Lever - Piston V Seal
Model: V shape piston
Product size: Approx. 49.5mm (OD) 40.5mm (ID) 7.8mm (Thickness)
Product weight: Approx. 5g
Material: Silicone rubber
SGS food test report: Please click here
Installation video: Please click here

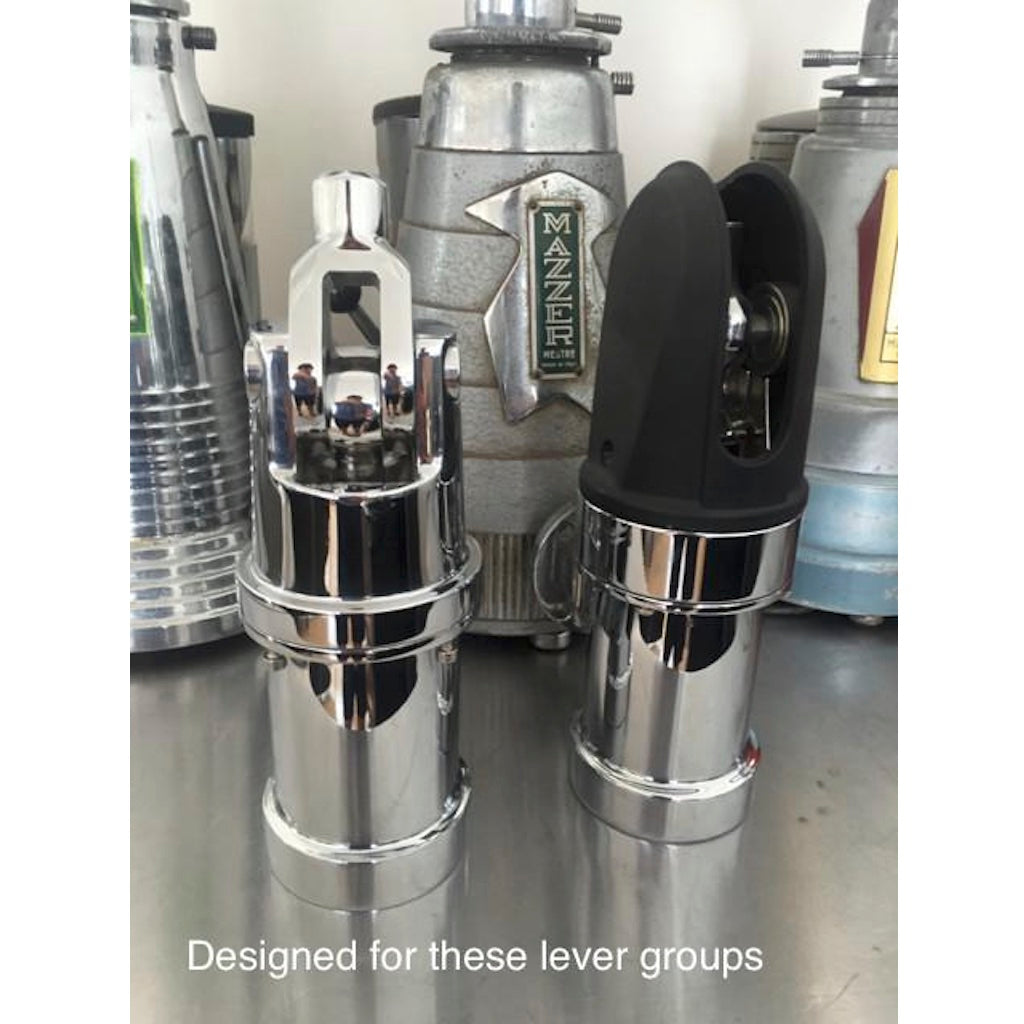

Please refer to the photo to see examples of the lever groups such as
- Astoria CMA
- Bezzera strega
- BFC: Class Leva
- Brasilia: Tofino-AL
- Fiorenzato C.S: Piazza San Marco
- Francino: Retro #FCL102
- Kees VDW
- Quickmill et al
- Pavoni: Bar, Bart, Hotel, Pub
- Hotel: Vallelunga Leva
- Vibiemme Replica
- Victora Arduino: Athen, Athen-Leva
- Wega: AL, Antares, Nova
- Profitec Pro 800 etc.
This item is non-refundable. Please check your original gasket size for confirmation. Cafelat UK Limited is not responsible for any incorrect purchase.
