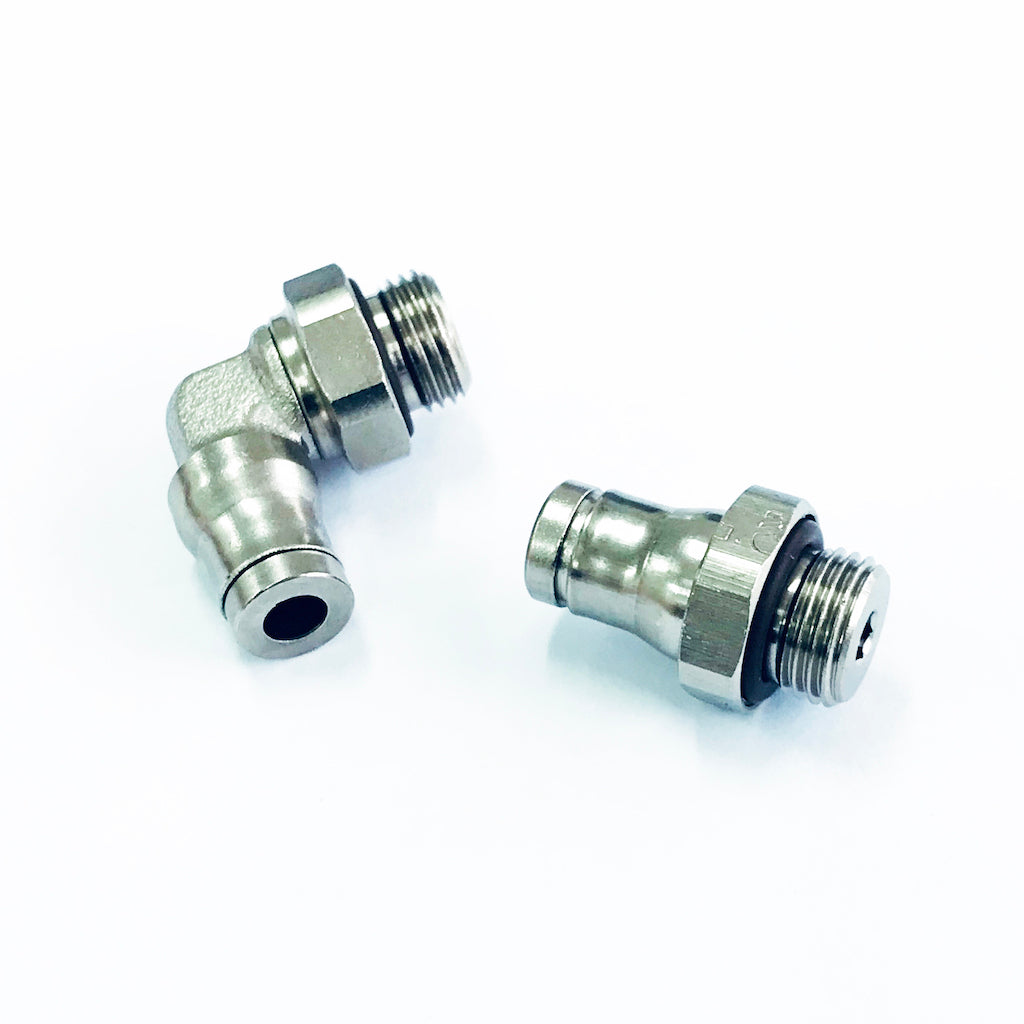

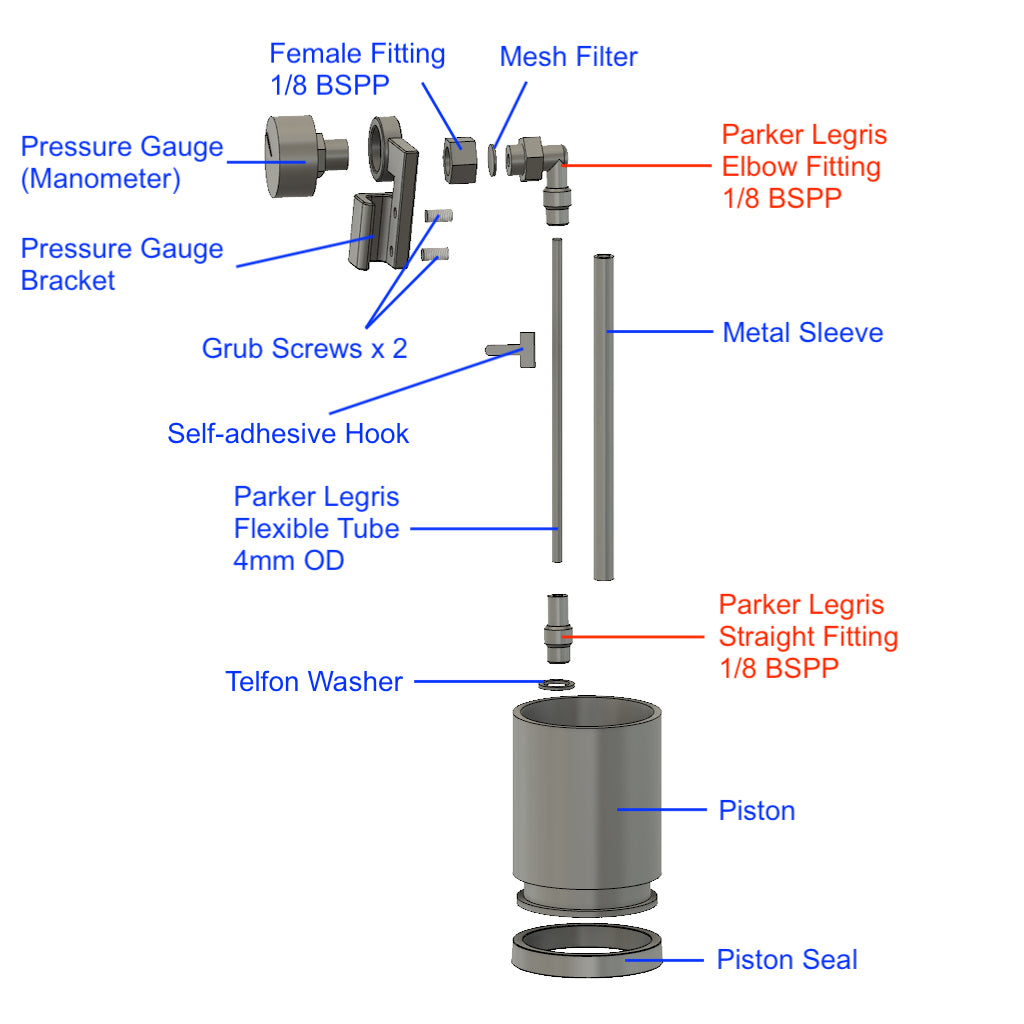

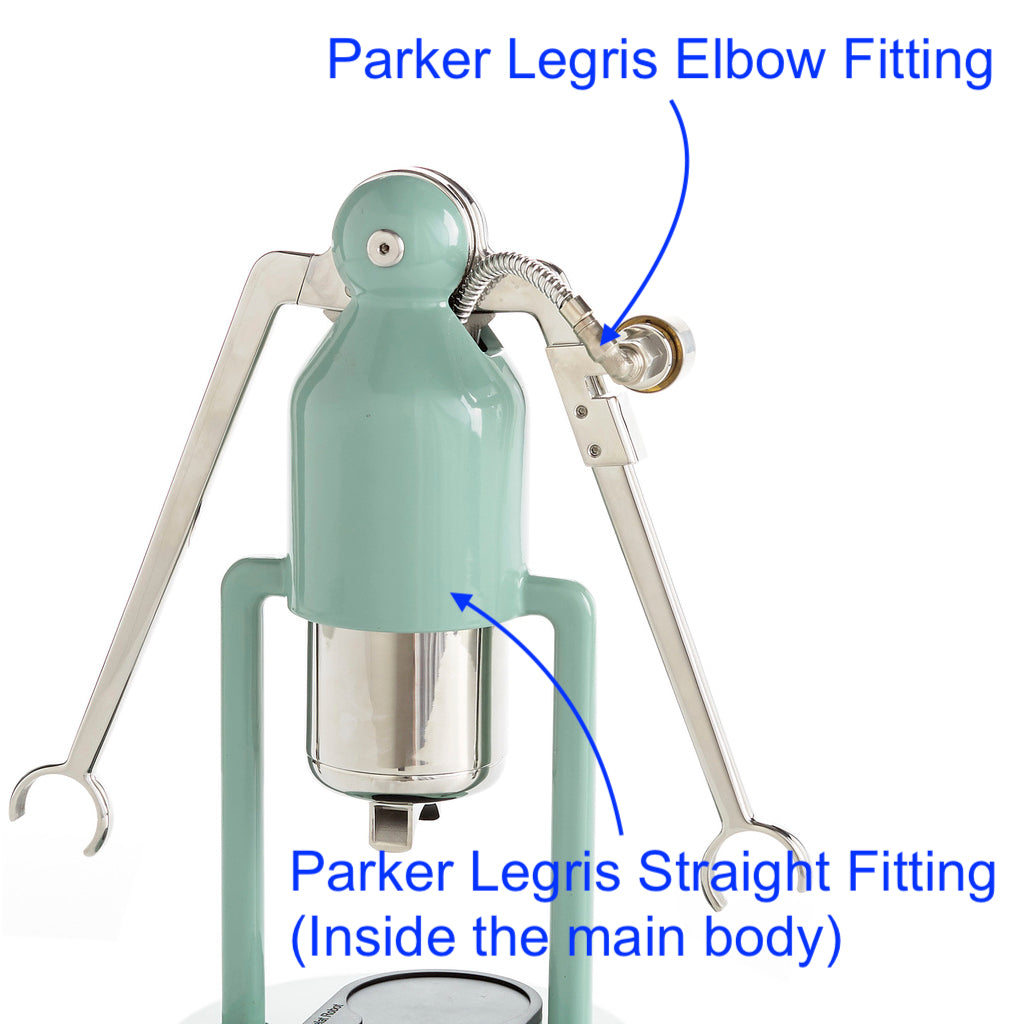

The straight fitting connects to the piston, and the elbow fitting connects to the pressure gauge. Both fittings have 1/8 BSPP threads.
All the fasteners have metric threads and require the use of metric tools:
Item: Robot Parker Legris FittingsModel: Elbow or straightProduct size: 1/8 BSPP, push in 4mm

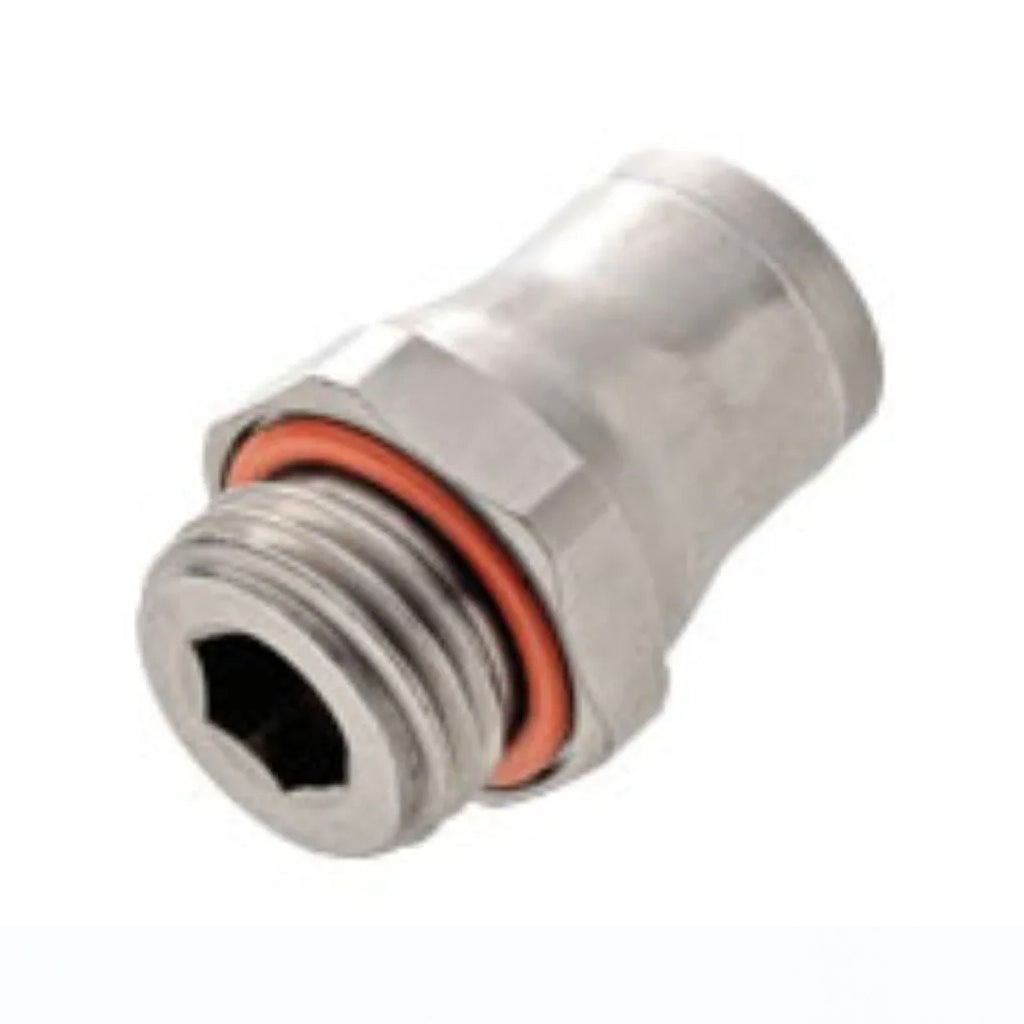

- Straight Fitting – use a 9mm socket

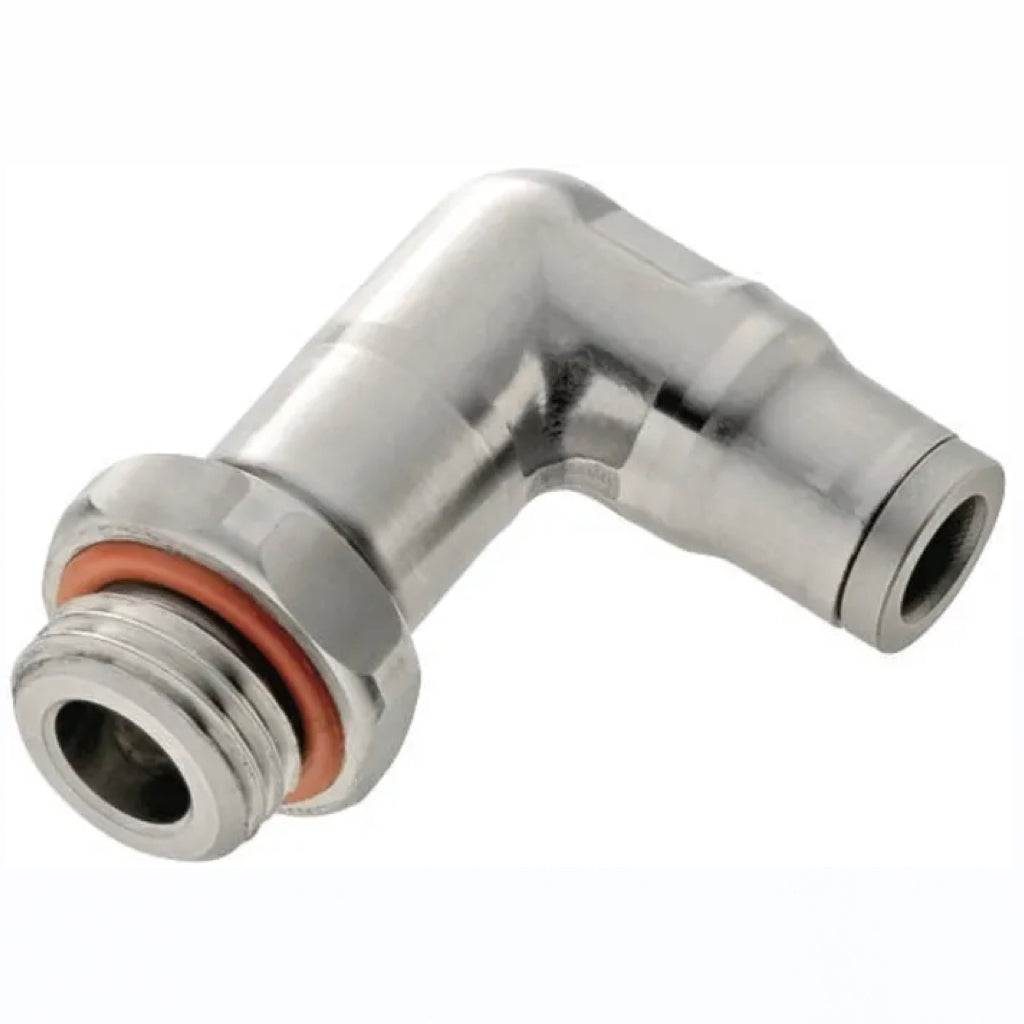

- Elbow Fitting – use a 13mm spanner
Product weight: Approx. 5g
Colour: Brush finish
Material: Stainless steel
Included in the package of Robot - Manual Espresso Maker?
||Yes, 1 full set is installed on the pressure gauge set.
Care and use:
To remove the flexible tube from these fittings, you must push down the locking collar while simultaneously pulling the flexible tube out of the fitting.
